AI-Powered Drawing Review
Detect tolerance issues, missing specs, and GD&T errors across 13+ categories in seconds — catching what manual review misses.
From Upload to Findings in Seconds
Four Ways to Analyze Your Drawings
Each module targets a specific engineering review need — from individual component checks to full assembly validation.
Component Analysis
Dimensional accuracy, GD&T compliance, tolerancing, datum references, and manufacturing considerations. Validated against ASME Y14.5 standards with 13+ error categories and 3-tier severity classification.
Comparative Analysis
Compare two drawing versions side-by-side. Detects changes in dimensions, tolerances, GD&T, geometry, and materials with risk assessment and interchangeability analysis.
Assembly Analysis
BOM completeness, component fit verification, stack-up tolerance analysis, assembly sequence feasibility, and interface compatibility checks.
Process Advisor
Upload a drawing and let AI recommend the optimal manufacturing process — Cast, Forge, Fabricate, or Machine — based on geometry, material, and tolerances.
See Every Detail
Process Advisor
Upload a drawing and let AI recommend the optimal manufacturing process — Cast, Forge, Fabricate, or Machine — based on geometry, material, and tolerance requirements.
Design Review

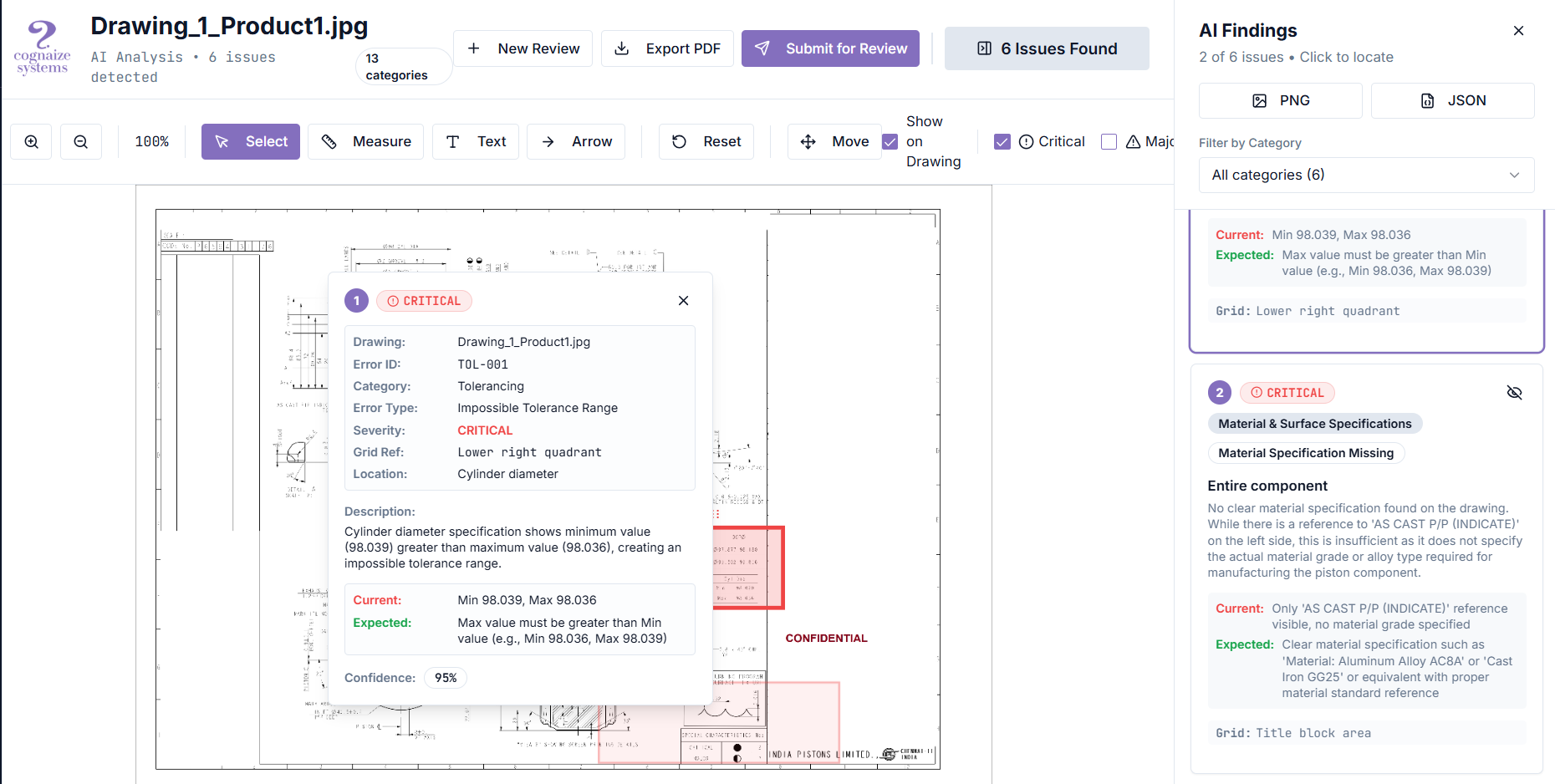

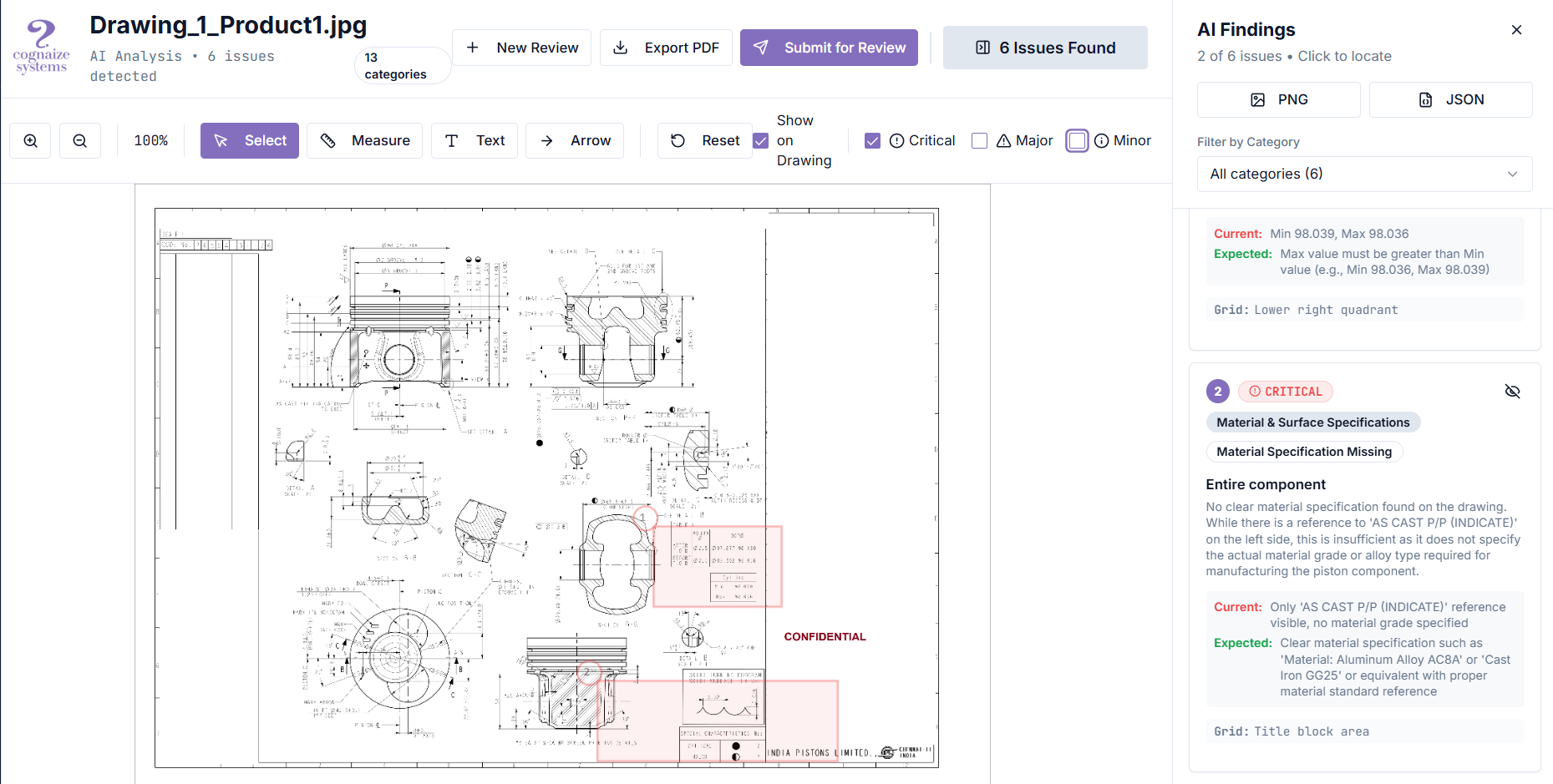

Upload any engineering drawing and get instant AI analysis across 13+ error categories. Issues are classified by severity — Critical, Major, and Minor — with confidence scores and grid references.
Drawing Version Comparison
Compare two drawing revisions side-by-side. AI detects changes in dimensions, tolerances, GD&T, geometry, and materials — with risk assessment for each modification.
13+ Error Categories Analyzed
Results That Speak for Themselves
2-4 hours → <15 minutes per drawing
Up from ~70% with manual review
12.5% rework exposure → <1.5%
Enterprise-Grade Security
Your engineering data is your competitive advantage. We protect it with the highest standards.
Pluggable Auth & SSO
Enterprise-grade authentication with SAML/OIDC SSO support for seamless integration with your identity provider.
Zero Data Persistence
Drawings and extracted data are processed in-memory and never stored on our servers beyond the active session.
Encrypted at Rest & Transit
All data is encrypted with AES-256 at rest and TLS 1.3 in transit, meeting SOC 2 and ISO 27001 standards.
Zero-Retention AI
Powered by Anthropic Claude with zero data retention — your drawings are never used to train AI models.
